K-Mobile E mobile interactive wall
A turnkey system, and the whole catalogue in your hands.
The unit arrives complete, sits at the foot of the wall and turns any light surface into a playing field. One electrical outlet is enough, no Wi-Fi required. The Editor version adds the essential piece: you create your own games with your own photos and questions.
Up and running the same day
Position it
Place the unit at the foot of the wall you choose.
Plug it in
A single 220V outlet is enough. No Wi-Fi required.
Calibrate
10-second calibration, adjust the image size.
Play
Select a game and start the first session.
The hardware in detail

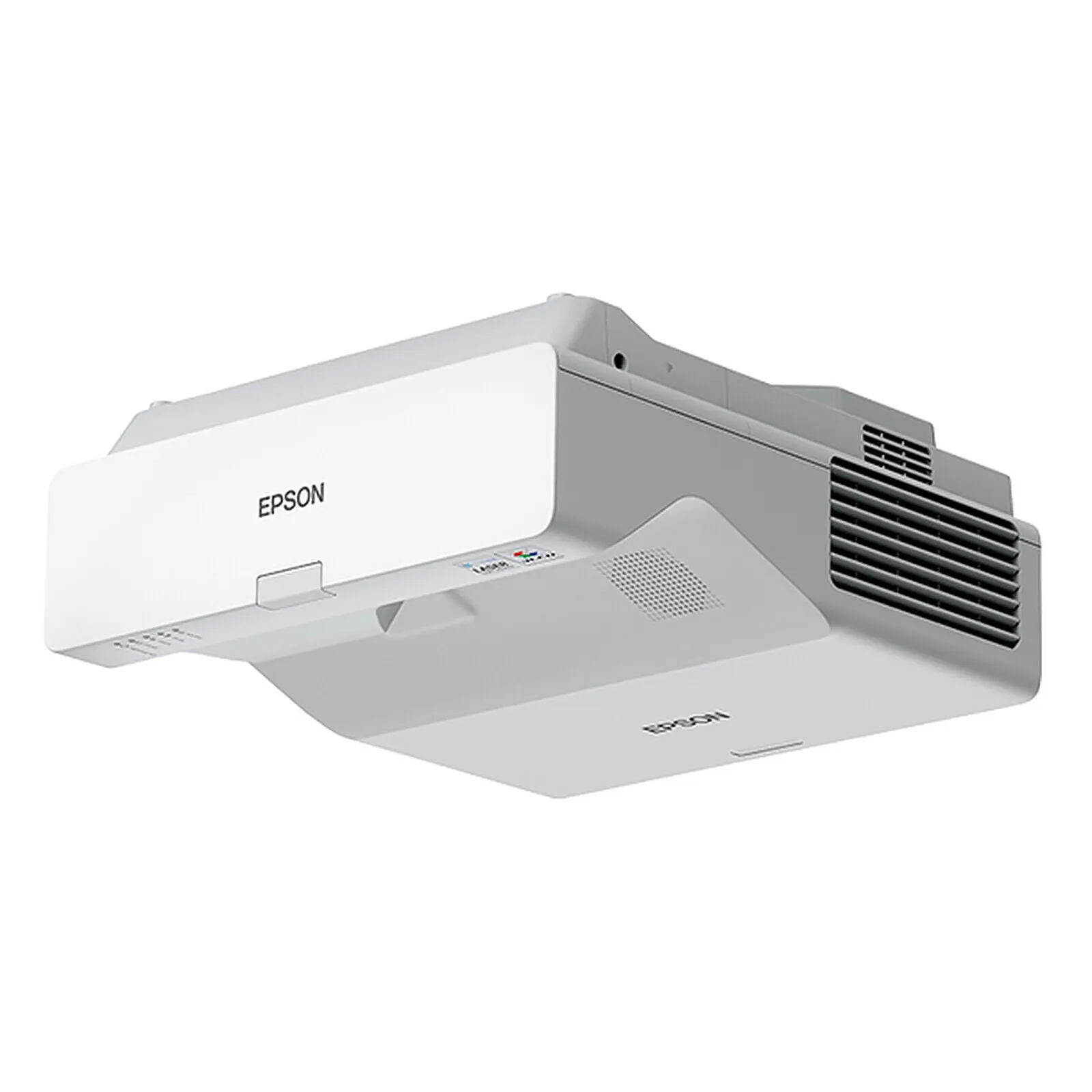

The projector is already in the unit
An ultra short throw projector is built into the mobile unit: nothing to mount, nothing to adjust in height, a single 220V outlet.
- Model
- EPSON EB-770F, ultra short throw
- Resolution
- Full HD 1080p (1920 × 1080), 16:9 format
- Brightness
- 4,100 lumens, 3LCD laser source
- Image size
- From 49" to 100", i.e. 2 m to 4 m projected length
- Distance from wall
- A few centimetres from the wall: no cast shadow, no glare for players
- Connectivity
- 3 × HDMI, Wi-Fi and Ethernet, connected to the unit via HDMI-HDMI
- Lifespan
- Laser light source, no lamp to replace, up to 20,000 hours
- Mount
- Wall mount included in the projector packs
Technical data sheet
- Dimensions
- 80 × 49 × 20 cm
- Weight
- 18 kg, fully equipped
- Power
- One standard 220V outlet
- Warranty
- 3 years, extendable to 5 years as an option
- Type
- Mobile interactive wall, all-in-one solution
- Contents
- Built-in short throw projector, Kmoove PC, laser sensor, audio system
- Setup
- 5 minutes, no tools, no wall mounting
- Sensor
- High-precision laser sensor: balls, hands, body
- Space required
- 5 m² on the floor, a light and smooth wall
- Connection
- None required, optional for updates
- Projected surface
- Adjustable from 2 m to 4 m length, 16:9 format
- Interactions
- Up to 20 real-time touch points, five simultaneous players and sixteen in relay
- Connected objects
- None, natural interaction
- Sensor lifespan
- Estimated 7 years of use
- Accessibility
- Playable standing, seated or from a wheelchair
- Apps
- The whole catalogue, including more than 30 customisable apps
- Kmoove Store
- Access to the multi-publisher library: extra games as an outright purchase or on subscription
- Community
- Scientific pathways and authorised customer developments, hosted by Kmoove
- Control
- Bluetooth keyboard supplied, or QR code from a tablet, phone or computer
- Manufacturing
- Designed and made in France, Kmoove SAS, Lyon
Complete the configuration
K-motion
A depth camera that clips onto the front of the unit. It unlocks full body detection games: players interact with their hands, arms, legs or torso, with no ball thrown. Fitted and removed with no tools.
Transport flight case
Reinforced protection for frequent travel and sharing between facilities.
